Fluted Glass Lever on Polished Chrome Rose

£35.10 £29.25 Pair
SKU
I443570
Fluted glass lever on polished chrome rose. Rose diameter measures 50mm, lever length is approximately 125mm. Supplied complete with spindle and screws.

Levers on rose handles can be used with a latch where the door is not required to lock; a bathroom lock where you would also need to use a turn and release; or a mortice sash lock where you would also need to use a pair of escutcheons. The locks and latches are usually 2.1/2in (64mm) or 3in (75mm) wide, although longer sizes can be obtained if the handles need to be placed further in from the door edge. When using the levers with a turn and release or escutcheons, these are fitted directly below the rose of the levers and are normally of a matching size and finish. The latch or lock is fitted into the edge of the door whereas the handles are fitted to either side of the door and are connected by a spindle located in the back of the levers. When the levers are pressed, the spindle rotates and operates the latch allowing the door to open. The levers are supplied complete with the spindle and fixing screws, but not with the latch or lock, which need to be purchased as a separate item.

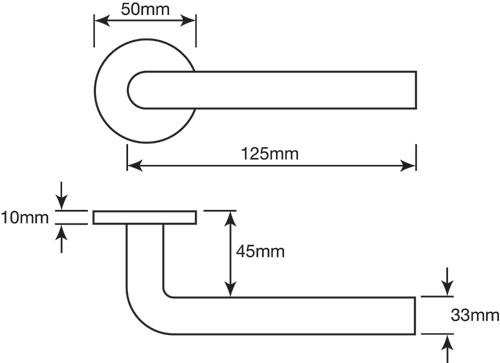

Dimensions Diagram

More Information
Price Unitpair
ModelJH5312PC
SKUI443570
DimensionsRose Diameter 50mm
Lever Length 125mm
Overall Projection 78mm
Rose Thickness 10mm
Approximate dimensions subject to change by the manufacturer, please contact us if this information is critical.
ManufacturerJedo
