Satin Stainless Steel Cranked Door Pull Handle Grade 304

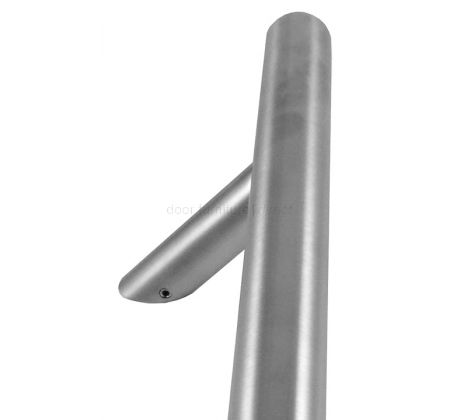

Grade 304 satin stainless steel cranked (offset) door pull handle. Handle has a 32mm diameter, projects 25mm and is available in lengths of 600mm, 1200mm and 1800mm. The 600mm and 1200mm handles have two support centres with the distance inbetween the centres measuring 400mm and 1000mm respectively. The 1800mm handle has three support centres with the centres distance measuring 800mm (see technical diagram below). Please note that these pull handles are cranked, meaning they are offset to the side when fitted with angled support legs. Please see the alternate images showing angled support legs.
Please select size required below.

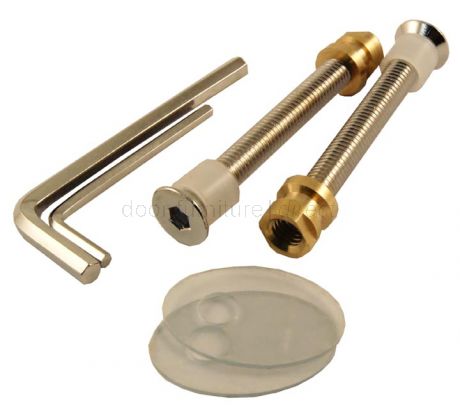

This handle is suitable for doors up to 70mm thick and is supplied complete with bolt through and back to back fixings for use on wooden or glass doors.

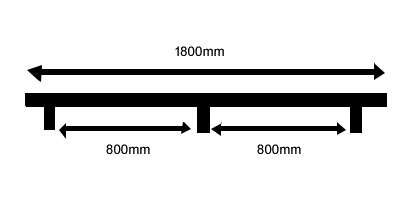

Technical diagram for 1800mm handle.
| Price Unit | Each |
|---|---|
| SKU | I432946-8 |
